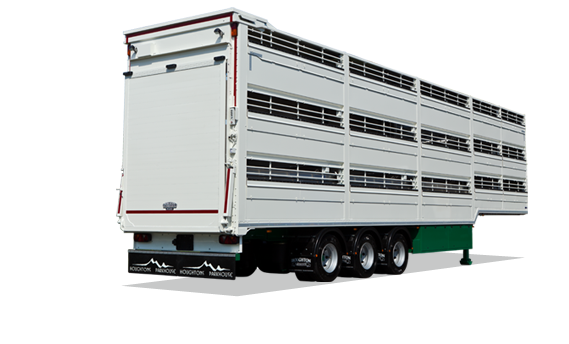

Professional Three Tier Lifting Deck

Suitable for pigs or adult cattle and ideal for larger-scale pig hauliers, this unit offers maximum ease of use and minimal loading stress for pigs.

Clean sided and aerodynamic, its easy clean, all alloy design delivers rapid turn-arounds and excellent fuel economy.

Straight and step frame versions available.

Error parsing XSLT file: \xslt\houghtons/ProductMediaItemsCarousel.xslt

Key Features

  • Hydraulic lifting decks to full length of main bed
  • Nexa Autocolor Turbo Plus 2-pack paint system in one colour of your choice

Chasis Options

  • Drawbar Trailer versions
  • Platform and Sub-frame versions
  • Step Frame Trailer versions
  • Straight Frame Trailer versions

    Alternatives

    • P-Line Three Tier Lifting Deck
    • Platinum Three Deck
    • Platinum Two / Three Deck

    Length

    Rigid: From 6.09m (20') upwards in modules of 305mm (1')

    Trailer: From 9.14m (30ft) to max legal limit

    Drawbar: From 5.48m (18') to 9.14m (30')

    External Width

    2.55m (8'4")

    Standard Features

    • Aerodynamic reinforced Bullnose bulkhead (semi trailers only)
    • All alloy rear loading gates using horizontal design for safety
    • All steel components hot-dip galvanised or zinc plated
    • Anti-slip alloy floor
    • Conspicuity tape (mandatory to all vehicles and trailers registered after 10th July 2011)
    • Easy clean design
    • Equal deck heights (other deck heights available)
    • Fixed alloy internal dividing gates with slam shut lever lock gate system
    • Floor welded all round
    • Hand back-up facility
    • High-grade alloy construction
    • Houghton ‘H’ frame cattle gates with integrated alloy sheep gates (step frame version only)
    • Hydraulic lifting deck to full length of main bed
    • Inspection door to each deck
    • LED marker lights to comply with legal requirements
    • Matt black rear ramp to prevent startling through sun glare
    • Nexa Autocolor Turbo Plus 2-pack paint system in one colour of your choice
    • One alloy gate per deck per 3.05m of transporter
    • One light per pen externally switched
    • Spring-assisted alloy-planked rear door with smooth exterior
    • Stainless steel hinge pins
    • Swan neck with one fixed, high-grade alloy plank deck and one alloy folding deck (step frame version only)

    Extra Options

    • Hydraulic alloy planked rear door
    • Hydraulic rear door within a door for loading through
    • Slurry tank built into rear with or without depression in floor
    • Stop/indicator options
    • Strengthened roof gutters
    • (N.B. - Some features subject to compatibility)

    This product can be supplied to fit a standard steel ladder frame or as a chassis with an all alloy integrated monocoque construction.

    To help you decide which is right for you, take a look at the feature sets below.

    Standard Steel Sub-Frame Construction

    • Container and trailer can be separated
    • Optional. certified quick-release straps or lift off brackets on some models
    • Demountable container allows alternative platform uses such as construction materials, hay haulage etc.
    • 40mm lower overall height compared to monocoque
    • Greater torsional rigidity

    For more information, see our detailed page on Houghton Parkhouse Platforms.

    All-Alloy Monocoque

    • Flush, easily cleaned underside
    • Nowhere for dirt or disease to hide
    • No silt build-up on frame - a potential weight saving of up to a quarter of a tonne!
    • Hollow alloy plank design means quieter loading and less startling
    • Better thermal insulation in extremes of heat and cold
    • No internal side bevels to accommodate frame giving larger floorspaces on trailer versions
    • No chance of broken bolsters or bearers - there aren't any
    • Planked floor suitable for pallet loading
    • No rust streaks or bubbled paintwork

    Still Can't Decide?

    We're always happy to talk through the pros and cons - just give us a ring.
