Length:
External length 12' Range: 4897mm (16'1")
Internal length 12' Range: 3737mm (12'3")
External length 13' Range: 5161mm (17')
Internal length 13' Range: 4001mm (13'1½")
External length 14' Range: 5425mm (17'10")
Internal length 14' Range: 4265mm (14')
Height:
External height: 2147mm (7'½")
Internal height standing on top deck 12' Range:
1815mm (5'11½")
Internal deck heights in a two-deck orientation:
Bottom deck: 940mm (3'1")
Top deck: 900mm (3')
Width:
External width: 2400mm (7'10½")
Internal width: 1762mm (5'9½")
Standard Features
- Aerodynamic bull nose bulkhead for superior fuel economy
- All alloy rear loading gates with horizontal spar design for safety
- All alloy monocoque design
- All steel components hot-dip galvanised or zinc plated

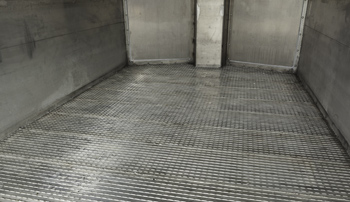

- Aluminium extruded panel floor with machined anti slip surface
- Better thermal insulation in extremes of heat and cold
- Closable sliding vent to the bottom for transporting cattle
- Compensating suspension to each axle, with torsion arms
- Easy-clean integral slurry trough
- Even weight distribution over uneven terrain
- Excellent aerodynamics

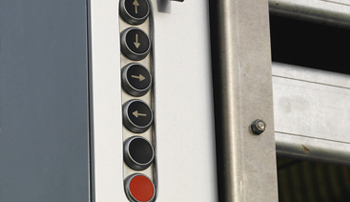

- External access to all lift mechanisms for ease of maintenance
- Flush, easily cleaned underside
- Greater fuel economy
- Heavy duty cranked axles

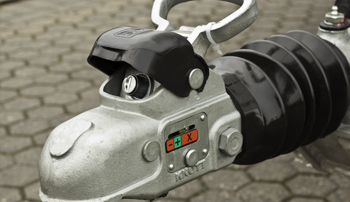

- Heavy duty towing hitch with locking facility
- Heavy duty jockey wheel assembly
- High capacity battery with charging system
- High-grade alloy extruded plank hydraulic lifting deck
- High-grade alloy monocoque construction
- High strength, impact resistant aluminium extruded side panels
- High load bearing 215 X 70R-15” out and out road tyre
- Hollow alloy planked design means quieter loading and less startling
- Improved wind resistance
- Increased capital gains at market
- Increased ride stability
- Inertia braking system (other options available on request)
- Keeps livestock clean
- Large brake capacity
- Larger wheel, less rotation, reduced wear
- LED lighting to comply with legal requirements and to reduce maintenance
- Lift system enables variable deck heights for ease of cleaning
- Machined anti slip surface to top faces
- Nexa Autocolor Turbo Plus 2-pack paint system in one colour of your choice
- No chance of broken bearers – there aren’t any

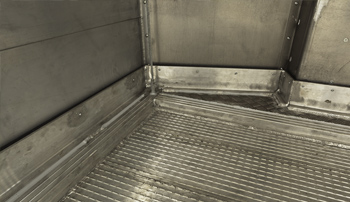

- No seepage from top deck down
- No silt build-up possible on the frame, saving weight and fuel
- No-run up to top deck eliminates statuary ramp angle issues
- No rust streaks - ever!
- Nowhere for dirt or disease to hide
- One light per deck, externally switched
- Open ventilation to top deck
- Planked floor suitable for pallet loading
- Reduced centre of gravity
- Reduced stress to animals
- Reduced stresses to chassis, running gear and coachwork for longer life
- Smooth, easy clean hygienic structure
- Smoother ride
- Spring assisted alloy planked rear door
- Strong, lightweight design to maximise payload
- Tri-axle (other options available)
- Unique, ultra-safe deck locking system
- Welded and watertight to give flush underside
